Miata Engine Insurance: Swap the Stock Dummy for a Real 2-in-1 Oil Gauge

By Mój sklep Admin
2 min read
Polisa na silnik: wymień fabryczną atrapę na prawdziwy zegar oleju 2-w-1 (ciśnienie + temperatura)

Why an Oil Pressure & Temperature Gauge Is a Must-Have for the MX-5 — and Why NAFL, NB, and NC Should Ditch the “Fake” Factory Gauge for Our PnP 2-in-1

Introduction

Oil is your engine's lifeblood. Without real pressure and temperature readouts, you're driving blind. On MX-5 NAFL, NB, and NC the factory oil-pressure “gauge” is effectively a dummy . The fix? Our plug-and-play 2-in-1 gauge (pressure + temperature) that replaces the factory unit, sensor included , OEM-look finish.

Why you need oil pressure

  • Early warning - pressure drops show up long before a warning lamp.
  • Safe rpm under load — aim for ~10 psi per 1,000 rpm (~0.7 bar/1,000 rpm).
  • Verify changes - viscosity, pump, bearings, cooler: see the impact in real time.

Why you need oil temperature

  • Don't push when cold — wait for ~80–90 °C .
  • Watch the upper range — street use typically 90–110 °C ; extended >120–125 °C calls for a cooler and/or different oil.
  • Choose viscosity wisely - real data enables smart daily/track decisions.

NAFL, NB & NC: the factory “oil pressure gauge” is a dummy

On NAFL, NB, and NC , the factory gauge does not show real pressure . The needle sits near the middle across a wide range and only moves at extremes. It's a simplified warning light, not a measurement.

Bottom line: to protect the engine, install a real gauge.

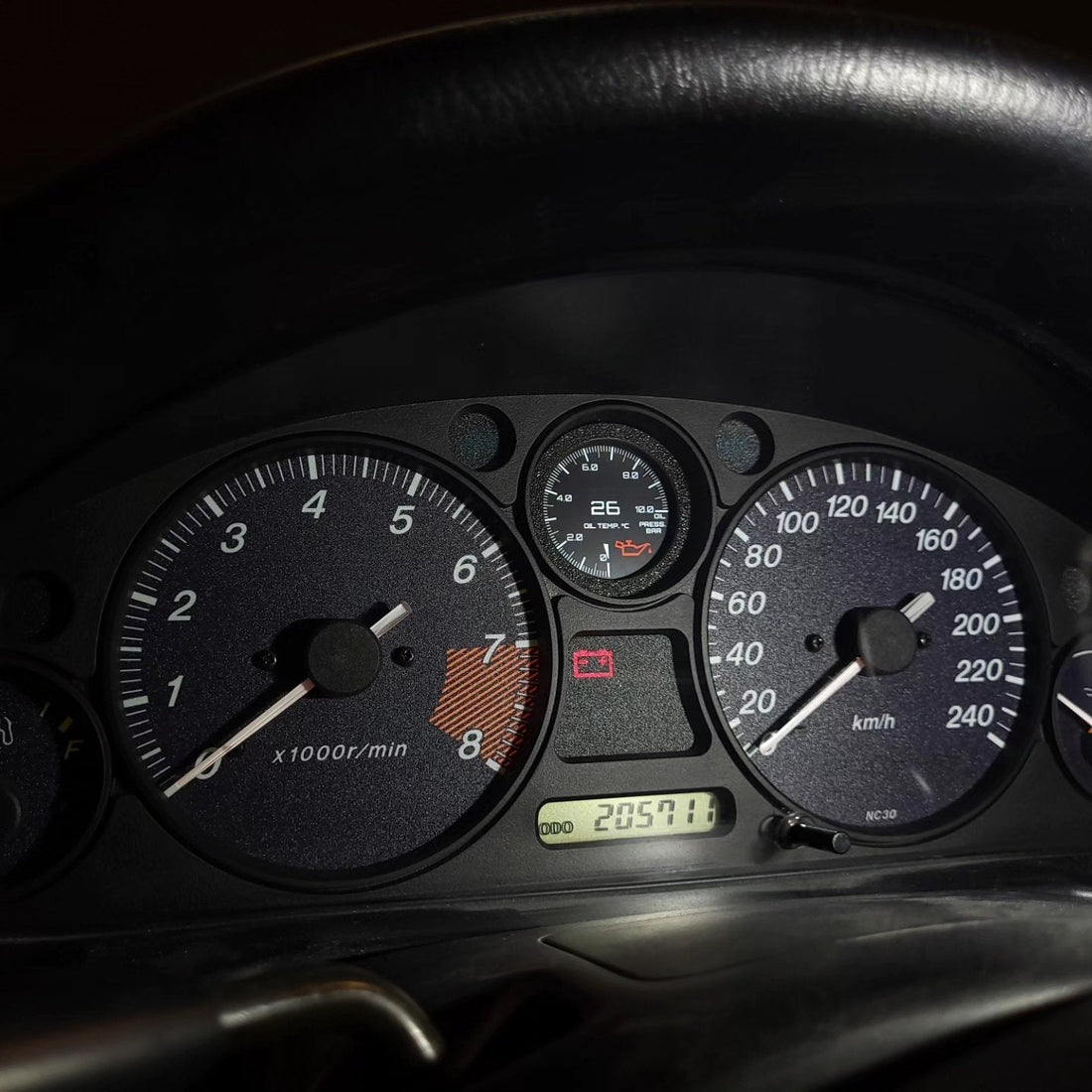

Our solution: PnP 2-in-1 gauge (pressure + temperature) in the OEM location

  • Direct replacement for NAFL/NB/NC - clean OEM look .
  • True pressure & temperature readouts - know what's happening inside the engine.
  • Complete plug-and-play kit - sensor included , pre-made harness/adapters; no splicing, no ECU changes.
  • Everything in the box - model-specific fittings and hardware for NAFL/NB/NC.
  • Support - we advise sensor placement, bulkhead routing, power, and setup.

Result: real data instead of a pretend needle, tidy OEM-style install, and peace of mind on road and track.

Reference ranges (guidelines)

  • Hot idle pressure: ~1.0–1.5 bar (depends on oil/engine condition).
  • Under load: ~0.7 bar per 1,000 rpm (eg, ~3.5 bar at 5,000 rpm).
  • Oil temperature: 90–110 °C, short bursts up to ~120 °C.

Guideline values; always consider your specific engine and oil.

Myths - quick reality check

  • “The oil warning light is enough.” If it's on, it may already be too late.
  • “NAFL/NB/NC have a gauge, so I'm fine.” That gauge is fake ; it doesn't show true pressure.
  • “I don't track the car, so I don't need this.” Many failures happen off-track: heat, traffic, low oil level.

Summary (TL;DR)

  • Real gauges are the cheapest engine insurance.
  • NAFL, NB, NC: the factory gauge is a dummy — swap it for our PnP 2-in-1 .
  • Complete kit (including sensor ) + OEM-location install = quick fit, accurate data, factory look.
